Application 应用

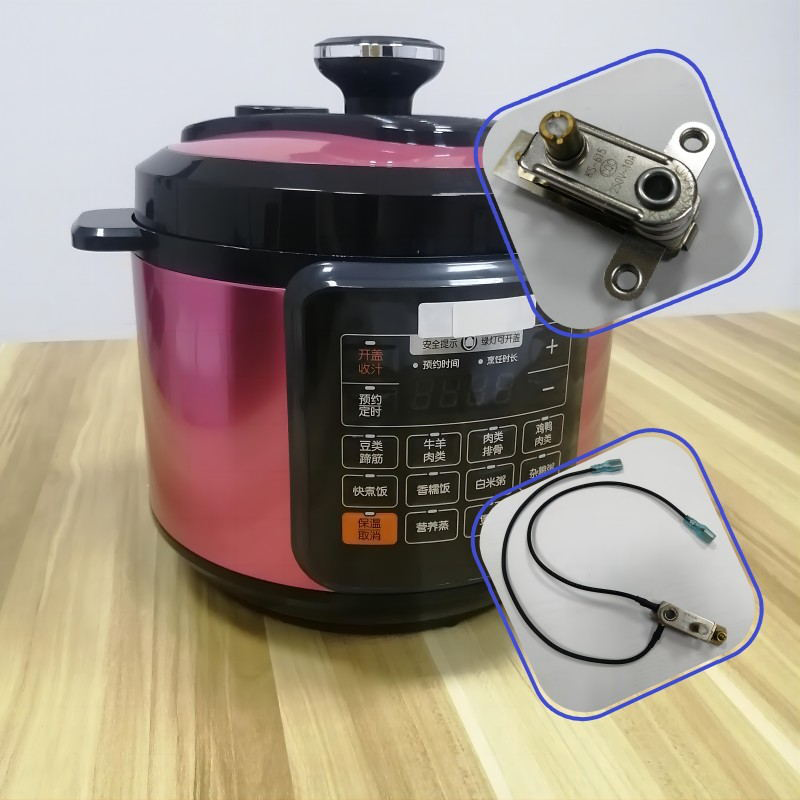

v For function Pressure cooker…etc.
v主要应用于电压力锅…等.
Specifications 规格

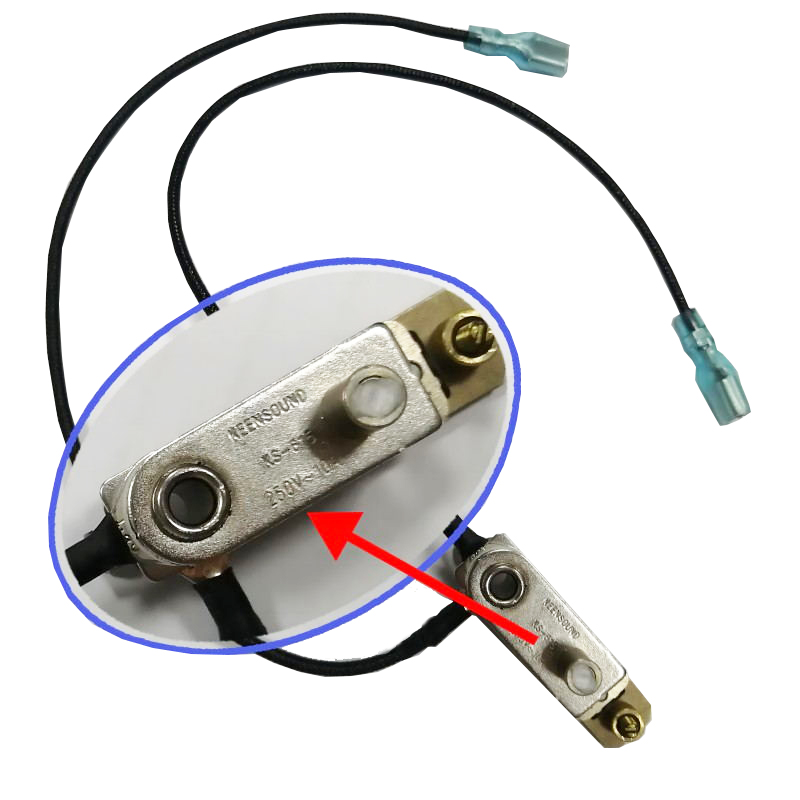

v Function : v 功能 : | When pressure increases to setting point, the electrical contacts opens; when pressure drops to setting value, the electrical contacts close and returns to normal status. 当压力达到额定值时，触点跳开，断开电路；当压力下降到设定值时，触点闭合，接通电路，回到初始状态 | |

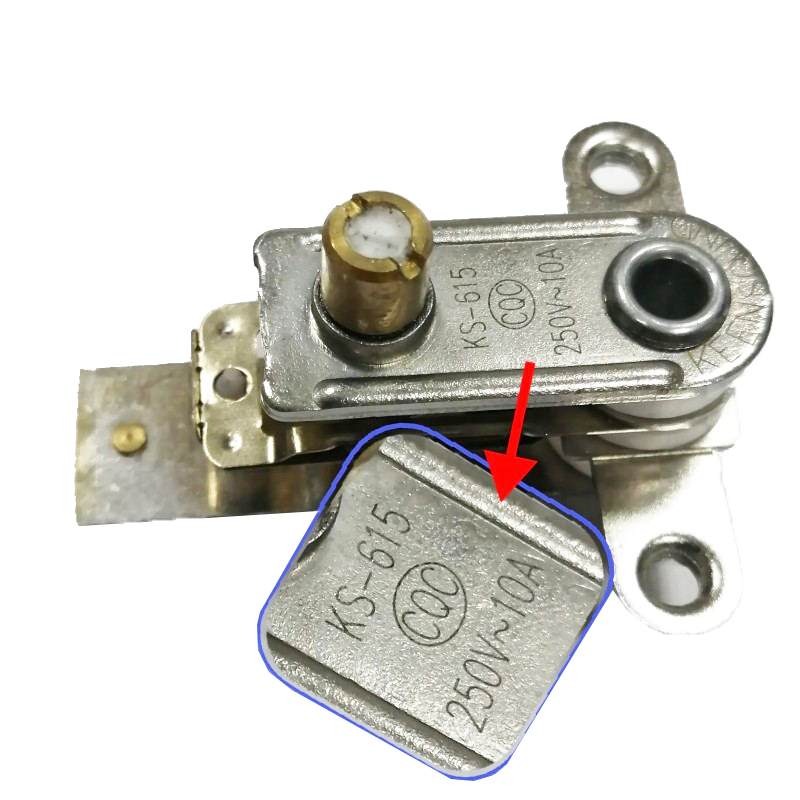

Standard Rating: v 额定功率标准 | [ CQC ] 250V AC 10A [TUV ] 125V/250V AC 10A | |
v Number of Automatic Cycles for each Automatic Action: v 自动循环动作寿命: | [ CQC ] 60,000 cycles [TUV ] 60,000 cycles | |
v Maximum Environment Temperature : v 最高环境使用工作温度 : | [ CQC ] 250°C [TUV ] 250°C | |
Connections 连接方式
v Push-on terminal ( For receptacle 4.8 mm or 6.3 mm ) and M3，M4 screw terminal is alternative.
v 接线片有插线（配4.8或6.3规格线插）端子及锁M3，M4螺纹端子规格供选择
Dimensions 尺寸
v Length of control shaft and angle of terminal plates is depended on customer requirement.
v转轴长度及接线片角度可依据客户要求来设定
Approval 认证
v CQC: CQC14002112122
v TUV Licence no.: R 50434226
